Deploying our app
cdktn diff
Before we deploy, let's take a look at what will happen when we deploy our app
(this is just the Resources section of the output):
$ cdktn diff
cdk-workshop Terraform used the selected providers to generate the following execution
plan. Resource actions are indicated with the following symbols:
cdk-workshop + create
Terraform will perform the following actions:
# aws_api_gateway_account.ViewHitCounter_ViewerEndpoint_Account_0B75E76A (ViewHitCounter/ViewerEndpoint/Account) will be created
+ resource "aws_api_gateway_account" "ViewHitCounter_ViewerEndpoint_Account_0B75E76A" {
+ api_key_version = (known after apply)
+ cloudwatch_role_arn = (known after apply)
+ features = (known after apply)
+ id = (known after apply)
+ throttle_settings = (known after apply)
}
# aws_api_gateway_deployment.ViewHitCounter_ViewerEndpoint_Deployment_1CE7C576 (ViewHitCounter/ViewerEndpoint/Deployment/Resource) will be created
+ resource "aws_api_gateway_deployment" "ViewHitCounter_ViewerEndpoint_Deployment_1CE7C576" {
+ created_date = (known after apply)
+ description = "Automatically created by the RestApi construct"
+ execution_arn = (known after apply)
+ id = (known after apply)
+ invoke_url = (known after apply)
+ rest_api_id = (known after apply)
+ triggers = {
+ "redeployment" = "2c0a96431a490394e62f6aa1253fcd32"
}
}
# aws_api_gateway_integration.ViewHitCounter_ViewerEndpoint_ANY_Integration_0D82D209 (ViewHitCounter/ViewerEndpoint/Default/ANY/Integration) will be created
+ resource "aws_api_gateway_integration" "ViewHitCounter_ViewerEndpoint_ANY_Integration_0D82D209" {
+ cache_namespace = (known after apply)
+ connection_type = "INTERNET"
+ http_method = "ANY"
+ id = (known after apply)
+ integration_http_method = "POST"
+ passthrough_behavior = (known after apply)
+ resource_id = (known after apply)
+ rest_api_id = (known after apply)
+ timeout_milliseconds = 29000
+ type = "AWS_PROXY"
+ uri = (known after apply)
}
...
# aws_lambda_permission.ViewHitCounter_ViewerEndpoint_proxy_ANY_ApiPermissionTestcdk-workshopViewHitCounterViewerEndpoint39EB6BA3ANYproxy_5F5DA8F5 (ViewHitCounter/ViewerEndpoint/Default/{proxy+}/ANY/ApiPermission.Test.cdk-workshopViewHitCounterViewerEndpoint39EB6BA3.ANY..{proxy+}) will be created
+ resource "aws_lambda_permission" "ViewHitCounter_ViewerEndpoint_proxy_ANY_ApiPermissionTestcdk-workshopViewHitCounterViewerEndpoint39EB6BA3ANYproxy_5F5DA8F5" {
+ action = "lambda:InvokeFunction"
+ function_name = (known after apply)
+ id = (known after apply)
+ principal = "apigateway.amazonaws.com"
+ source_arn = (known after apply)
+ statement_id = (known after apply)
+ statement_id_prefix = (known after apply)
}
# aws_lambda_permission.ViewHitCounter_ViewerEndpoint_proxy_ANY_ApiPermissioncdk-workshopViewHitCounterViewerEndpoint39EB6BA3ANYproxy_D511D77E (ViewHitCounter/ViewerEndpoint/Default/{proxy+}/ANY/ApiPermission.cdk-workshopViewHitCounterViewerEndpoint39EB6BA3.ANY..{proxy+}) will be created
+ resource "aws_lambda_permission" "ViewHitCounter_ViewerEndpoint_proxy_ANY_ApiPermissioncdk-workshopViewHitCounterViewerEndpoint39EB6BA3ANYproxy_D511D77E" {
+ action = "lambda:InvokeFunction"
+ function_name = (known after apply)
+ id = (known after apply)
+ principal = "apigateway.amazonaws.com"
+ source_arn = (known after apply)
+ statement_id = (known after apply)
+ statement_id_prefix = (known after apply)
}
# aws_s3_object.FileAsset_0_S3 (FileAsset_0_S3) will be created
+ resource "aws_s3_object" "FileAsset_0_S3" {
+ acl = (known after apply)
+ arn = (known after apply)
+ bucket = "cdk-workshop-dev-694710432912-us-east-1"
+ bucket_key_enabled = (known after apply)
+ checksum_crc32 = (known after apply)
+ checksum_crc32c = (known after apply)
+ checksum_crc64nvme = (known after apply)
+ checksum_sha1 = (known after apply)
+ checksum_sha256 = (known after apply)
+ content_type = (known after apply)
+ etag = (known after apply)
+ force_destroy = false
+ id = (known after apply)
+ key = "d9cdd7bdd784d6248d9a68dc7b1e49029a879f67840bd9cd5a3fd41de8b64c15.zip"
+ kms_key_id = (known after apply)
+ server_side_encryption = (known after apply)
+ source = "assets/FileAsset_0/d9cdd7bdd784d6248d9a68dc7b1e49029a879f67840bd9cd5a3fd41de8b64c15/archive.zip"
+ source_hash = "d9cdd7bdd784d6248d9a68dc7b1e49029a879f67840bd9cd5a3fd41de8b64c15"
+ storage_class = (known after apply)
+ tags_all = (known after apply)
+ version_id = (known after apply)
}
Plan: 19 to add, 0 to change, 0 to destroy.You'll notice that the table viewer adds another API Gateway endpoint, a Lambda function, permissions, outputs, all sorts of goodies.
cdktn deploy
$ cdktn deploy --skip-synth
...
cdk-workshop EndpointOutputs = {
"restApiId" = "xxxxxxxxx"
"restApiName" = "cdkworkshopEndpoint424A4D39"
"restApiRootResourceId" = "aaaaaaaaa"
"url" = "https://xxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/"
}
ViewerEndpointOutputs = {
"restApiId" = "yyyyyyyyy"
"restApiName" = "cdkworkshopViewHitCounterViewerEndpoint39EB6BA3"
"restApiRootResourceId" = "bbbbbbbbb"
"url" = "https://yyyyyyyyy.execute-api.us-east-1.amazonaws.com/prod/"
}You'll see the viewer endpoint as an output.
Viewing the hit counter table

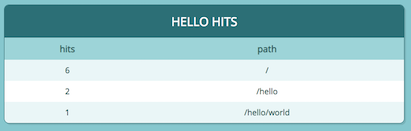

Open your browser and browse to the hit counter viewer endpoint URL. You should see something like this:
Send a few requests
Send a few more requests to your "hello" endpoint and monitor your hit counter viewer. You should see the values update in real-time.
Use curl or your web browser to produce a few hits:
$ curl https://xxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/hit1
$ curl https://xxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/hit1
$ curl https://xxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/hit1
$ curl https://xxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/hit1
$ curl https://xxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/hoooot
$ curl https://xxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/hoooot
$ curl https://xxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/hit1
$ curl https://xxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/hit1
$ curl https://xxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/hit1
$ curl https://xxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/hit1
$ curl https://xxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/hoooot
$ curl https://xxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/hoooot
$ curl https://xxxxxxxxxx.execute-api.us-east-1.amazonaws.com/prod/hit1
